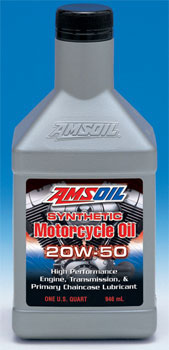

SAE 20W-50 Synthetic Motorcycle Oil (MCV)
High Performance Lubricant for Engines, Transmissions and Primary Chaincases


API SG, SL/CF, CG-4; JASO MA/MA2; ISO-L-EMA2; API GL-1

Package sizes include:

1-Quart Bottle
1-Quart Bottles (case of 12)
1-Gallon Bottle
1-Gallon Bottles (case of 4)
30-Gallon Drum
55-Gallon Drum

AMSOIL Recommended Oils For Harley Davidson Motorcycles

PRODUCT DESCRIPTION
AMSOIL 20W-50 Synthetic Motorcycle Oil is a premium oil designed for those who demand the absolute best lubrication for their motorcycles. AMSOIL 20W-50 Motorcycle Oil is the result of extensive research and is specially formulated to excel in all areas unique to motorcycles, including the high temperatures of air-cooled engines such as Harley-Davidson® V-Twins, wet-clutch lubrication, extreme-pressure regions of gears and chains and rust common to short trips and storage.

AMSOIL 20W-50 Synthetic Motorcycle Oil is multi-functional and fulfills the requirements of both domestic and foreign motorcycles. It outperforms other conventional and synthetic motorcycle oils. AMSOIL, the leader in synthetic lubrication, produced the world’s first API-qualified synthetic motor oil in 1972. Trust the extensive experience of AMSOIL, The First in Synthetics,® to do the best job protecting your motorcycle.

Reduces Friction, Heat and Wear
In high heat conditions, engine protection is not sacrificed with AMSOIL Synthetic Motorcycle Oil. It has exceptional high-temperature film strength and contains a heavy treatment of anti-wear additives to reduce wear regardless of operating conditions. AMSOIL 20W-50 Motorcycle Oil is thermally (heat) stable and contains maximum levels of oxidation inhibitor additives. It is extremely resistant to breakdown and engineered to prevent damaging sludge and carbon deposits for superior engine cleanliness.

Provides Extreme Pressure Quality Protection for Gears and Chains

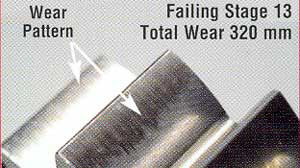

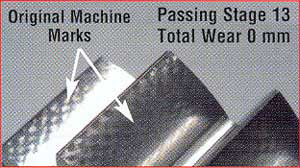

With AMSOIL Synthetic Motorcycle Oil, there is no need for separate transmission or primary chaincase lubricants. It is absolutely shear stable and will not thin out from mechanical activity. AMSOIL 20W-50 Motorcycle Oil performs like a gear lube without the negative effects of extreme-pressure additives. In the FZG gear test, AMSOIL achieved a perfect score with a “zero” wear rating (see test photo).

Delivers Superior Rust Protection

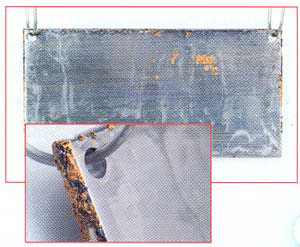

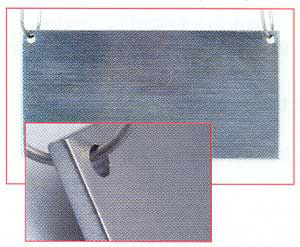

Motorcycles are prone to rust from storage, humidity and short drives. Rust can cause major damage such as roller bearing failure, uncontrolled wear, compression loss and blow-by. Good rust protection, however, comes by design and is not natural to engine oils. Unlike many motorcycle oils, AMSOIL Synthetic Motorcycle Oil contains special anti-rust agents. It passes the ASTM D-1748 humidity cabinet rust test and clearly demonstrates superior rust protection.

Provides Excellent Wet Clutch Performance
AMSOIL 20W-50 Synthetic Motorcycle Oil contains no friction modifiers and promotes smooth shifting and positive clutch engagement. It controls heat and helps prevent slippage and glazing, while its high TBN helps to improve clutch life by resisting the acids that can degrade clutch material.

APPLICATIONS
AMSOIL Synthetic 20W-50 Motorcycle Oil is recommended for air or liquid cooled 4-stroke engines. It meets SAE 90, API GL-1 gear oil requirements and is recommended for transmissions and primary chaincases. AMSOIL MCV is recommended for Harley Davidson®, Buell®, KTM, Ducati®, Aprilia®, BMW®, Triumph® and other motorcycles where 15W-50 or 20W-50 engine oils or SAE 90, GL-1 gear oils are used. Not recommended where an API GL-4 or GL-5 gear oil is required.

MIXING AMSOIL
AMSOIL Synthetic 20W-50 Motorcycle Oil is compatible with conventional and synthetic motor oils; however, mixing oils may shorten the oil life expectancy and reduce the performance benefits. AMSOIL does not support extended drain intervals where oils have been mixed.

Aftermarket oil additives are not recommended for use with AMSOIL motorcycle oil.

SERVICE LIFE
Recommended for use up to twice the motorcycle manufacturer change interval (miles/hours) or one year, whichever comes first, in engines, transmissions and primary chaincases. For Big Twin Harley-Davidson transmissions only, follow the Harley-Davidson recommended drain interval for synthetic oil of up to 20,000 miles or one year, whichever comes first. When using an engine filter other than AMSOIL Ea, change the filter at standard intervals.

For off-road use, change AMSOIL MCV at motorcycle manufacturer-recommended intervals.

Racing or modified engines are excluded from extended drain interval recommendations. Oil changes are at the owner’s discretion.

TYPICAL TECHNICAL PROPERTIES

SAE 20W-50 Synthetic Motorcycle Oil (MCV)

Kinematic Viscosity @ 100°C, cSt (ASTM D 445)

20.4

Kinematic Viscosity @ 40°C, cSt (ASTM D 445)

162.2

Viscosity Index (ASTM D 2270)

147

Pour Point °C (°F) (ASTM D 97)

-40 (-40)
Flash Point °C (°F) (ASTM D 92) 238 (460)

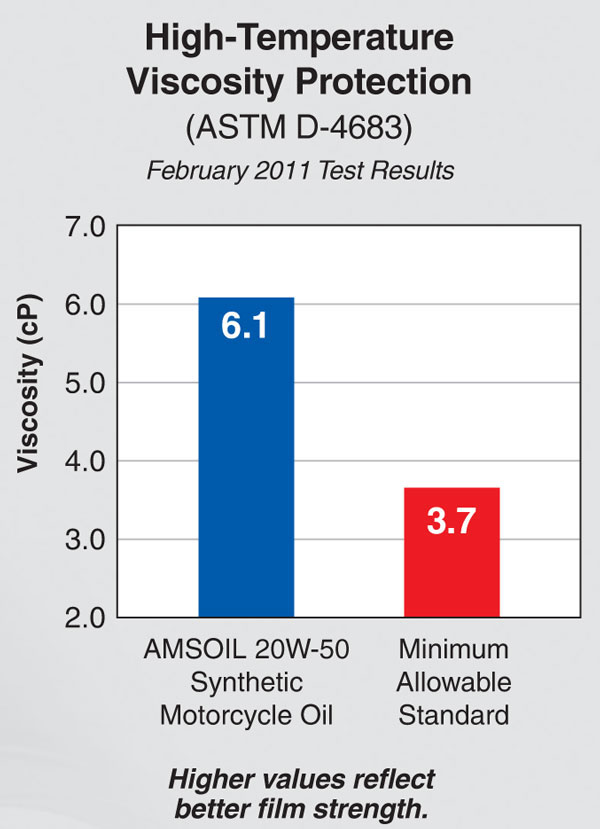

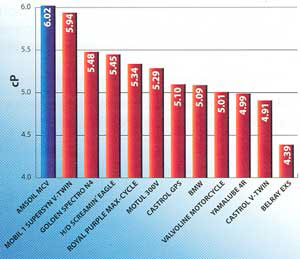

High Temperature/High Shear Viscosity (ASTM D 5481 @ 150°C , 1.0 x 106 s-1), cP 6.1

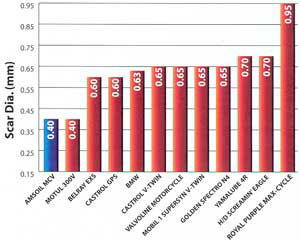

Four Ball Wear Test (ASTM D 4172 @ 40 kgf, 150°C, 1800 rpm, 1 hour), Scar, mm 0.4
FZG (ASTM D 5182), Load Stage Pass (Wear in mm) 13 (0mm)

Noack Volatility, % weight loss (g/100g) (ASTM D 5800)

4.0
Foam (ASTM D 892, Sequence I, II & III) 0/0/0
Shear Stability Kurt Orbahn (ASTM D 6278), % viscosity change 120 cycles 0.25
Rust Test - Humidity Cabinet (ASTM D 1748) No Rust, Pass

Total Base Number

11.1
