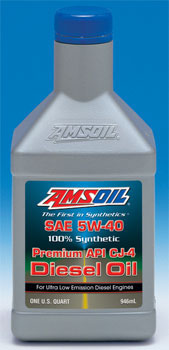

AMSOIL Premium API CJ-4 Synthetic 5W-40 Diesel Oil (DEO)


Maximum Fuel Economy and Extended Drain Intervals in Ultra-Low Emission Diesel Engines. AMSOIL Synthetic 5W-40 Diesel Oil (DEO) is the premium choice for API CJ-4 emission-quality diesel oil required by model-year 2007 and newer diesel engines.


Package sizes include:

1-Quart Bottle
1-Quart Bottles (case of 12)
1-Gallon Bottle
1-Gallon Bottles (case of 4)
2.5-Gallon Bottle
2.5-Gallon Bottles (twin pack)
30-Gallon Drum
55-Gallon Drum

PRODUCT DESCRIPTION
AMSOIL Synthetic 5W-40 Diesel Oil (DEO) is the premium choice for API CJ-4 emission-quality diesel oil required by model-year 2007 and newer diesel engines. It delivers extraordinary lubrication in diesel engines found in commercial, fleet and personal vehicles. Built with the latest additive and synthetic base oil technology, AMSOIL Premium Synthetic 5W-40 Diesel Oil exceeds the higher performance demands of modern engines. It withstands the stress of heat, soot and acids to help prevent deposits, wear and corrosion. AMSOIL Synthetic 5W-40 is wax-free with a broad viscosity range to provide exceptional cold-weather starting and high temperature protection. It resists breakdown and offers maximum fuel efficiency over extended drain intervals.

AMSOIL, the leader in automotive synthetic lubrication, produced the world’s first API-qualified synthetic motor oil in 1972. Trust the extensive experience of AMSOIL, The First in Synthetics,® to do the best job protecting your engine.

Exceeds Emission System Requirements
AMSOIL Synthetic 5W-40 Diesel Oil is a low-sulfated ash formulation that exceeds the requirements for low-emission quality diesel oil. It is compatible with all exhaust treatment devices and is designed to extend the service life of diesel particulate fi lters (DPF).

Extended Drain Performance
AMSOIL Premium 5W-40 Diesel Oil can extend drain intervals far beyond those recommended for conventional petroleum oils. Its unique synthetic formulation and long-drain additive system (10.4 TBN) deliver superior engine protection, cleanliness and performance over extended drain intervals. AMSOIL Synthetic 5W-40 Diesel Oil provides
maximum protection for up to 3X the OEM-recommended drain interval, even further with oil analysis.

Improves Fuel Economy
The advanced synthetic technology used to engineer AMSOIL Premium 5W-40 Diesel Oil enhances viscosity properties and is proven to deliver better fuel economy. In fact, the Environmental Protection Agency’s (EPA) Federal Test Procedure confirms that AMSOIL 5W-40 Diesel Oil provides up to 3 percent better fuel economy than conventional 15W-40 diesel oils.

Fleet Savings vs. conventional 15W-40
1 Truck
50 Trucks
Fuel Economy Savings (1.6%) $945 $47,250
Extended Drain Savings $210 $10,500
Total Savings with AMSOIL $1,161 $58,050

*Based on 120,000 miles per year with an OEM-recommended drain interval of 10,000 miles. Avg. 6 mpg, 32-qt. oil sump, $3/gal. fuel, $34.10/gal. AMSOIL (Retail), $13.55/gal. conventional diesel oil. Does not include labor, filter or used oil disposal costs, making AMSOIL even more cost effective. Pricing samples taken April 2009.

Reduces Oil Consumption and Emissions
AMSOIL Synthetic 5W-40 Diesel Oil has lower volatility (burn-off) than conventional petroleum oils. Because less oil vapor passes into the combustion chamber, oil consumption and emissions are reduced. Lower volatility helps AMSOIL Premium Diesel Oil retain its viscosity after high-temperature service for dependable protection and excellent fuel economy.

Controls Soot-Thickening and Wear
The advanced synthetic base oils in AMSOIL 5W-40 Diesel Oil are naturally resistant to soot contamination. That, along with a heavy fortification of detergent/dispersant additives, keeps soot particles suspended independently, helping prevent the formation of larger wear-causing particles. Viscosity increase is minimized and soot-related wear is controlled.

APPLICATIONS
AMSOIL Premium CJ-4 Synthetic 5W-40 Diesel Oil is recommended for diesel engines and, where appropriate, gasoline engines requiring any of the following specifications:

• SAE 5W-40 • API CJ-4, CI-4+, CF, SM
• ACEA E7, E9 • Mack EO-O Premium Plus
• DDC Power Guard 93K218
• Caterpillar ECF-3, ECF-2 • Cummins 20081
• Volvo VDS-4 • MB 228.31 • MTU Type I & II
• MAN 3275 • JASO DH-2 • Global DHD-1
• Renault RLD-3

COMPATIBILITY
AMSOIL Synthetic 5W-40 Diesel Oil is compatible with conventional and synthetic motor oils. Mixing AMSOIL motor oils with other oils, however, will shorten the oil life expectancy and reduce the performance benefits. AMSOIL does not support extended drain intervals where oils have been mixed. Aftermarket oil additives are not recommended for
use with AMSOIL motor oils.

SERVICE LIFE
AMSOIL Premium API CJ-4 Synthetic 5W-40 Diesel Oil (DEO) is recommended for extended drain intervals in engines that are unmodified and in good operating condition:

Diesel Engine Service

  • Three times (3X) OEM* recommendation, not to exceed 50,000 miles/600 hours or one year, whichever comes first. Drain intervals may be extended further with oil analysis.
  • 2007-2009 Caterpillar C13, C15 on-highway engines must follow OEM drain interval.
  • 2007-2010 Dodge 6.7L, Ford 6.4L, GM 6.6L LMM light duty diesel pickups must follow OEM drain interval. Drain intervals can be extended further with oil analysis.

Gasoline Engine Service

  • Two times (2X) OEM* recommendation, not to exceed 15,000 miles or one year, whichever comes first.

*Operating conditions and drain intervals for normal and severe service are defined by the OEM. Refer to your owner’s manual.

Note: Extended drain intervals are not recommended when using biofuels containing >10% ethanol or 5% biodiesel (B5). Follow OEM drain intervals or extend drain intervals with oil analysis.

HEALTH & SAFETY
This product is not expected to cause health concerns when used for the intended application and according to the recommendations in the Material Safety Data Sheet (MSDS). An MSDS is available upon request at 715-392-7101 or on the AMSOIL Corporate Website. Keep out of the reach of children. Don't pollute. Return used oil to collection centers.

TYPICAL TECHNICAL PROPERTIES

AMSOIL Premium API CJ-4 Synthetic 5W-40 Diesel Oil (DEO)

Kinematic Viscosity @ 100°C, cSt (ASTM D-445)

14.6

Kinematic Viscosity @ 40°C, cSt (ASTM D-445)

87.1

Viscosity Index (ASTM D-2270)

175

CCS Viscosity @ -30°C, cP (ASTM D-5293)

6075

Flash Point °C (°F) (ASTM D-92)

232 (450)

Fire Point °C (°F) (ASTM D-92)

246 (475)

Pour Point °C (°F) (ASTM D-97)

-46 (-51)

Noack Volatility (DIN 51581) 250°C for 1 hour, % weight loss

9.7

Four-Ball Wear Test (ASTM D-4172: 40kgf, 75°C, 1200 rpm, 1 hr) Scar diameter, mm

0.45

Total Base Number

10.4

High Temperature/High Shear Viscosity, cP (ASTM D-4683)

4.0

Sulfated Ash Content, wt. %

1.0
