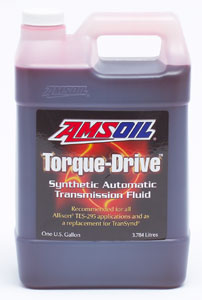

Torque-Drive™ Synthetic Automatic Transmission Fluid (ATD)

Recommended for use in applications specifying Allison® TES-295 or C4, DEXRON® III, MERCON®, Voith G-1363, ZF® TE-ML 14C

See Pricing Information or Place an Order through the AMSOIL Online Store

Package sizes include:

1-Gallon Bottle
1-Gallon Bottles (case of 4)
2.5-Gallon Bottle
2.5-Gallon Bottles (case of 2)
16-Gallon Keg
30-Gallon Drum
55-Gallon Drum
                                          275-Gallon Tote

Engineered for outstanding performance in heavy-duty transmissions manufactured by Allison, Voith, ZF, Ford, GM and Mercedes-Benz. Excellent protection in temperature extremes. Ensures consistent, smooth clutch engagement over the life of the fluid and controls clutch glazing and elongated shift times.

AMSOIL recommends Torque-Drive® for use in all automatic transmissions requiring any of the following specifications: Allison® TES 295, TES 389, C-4; Voith® 55.6336.XX; ZF® TE-ML 14C; GM Dexron® III; Ford Mercon®; Mercedes-Benz® 236.10

Engineered to eliminate deficiencies common to all conventional petroleum ATFs, AMSOIL Torque-Drive provides superior performance and protection against thermal and oxidative degradation, sludge and varnish formation, viscosity shear down, cold-temperature oil thickening, poor friction stability, high component wear and shortened oil life. Automatic transmission operating expenses can be directly linked to transmission fluid quality. Poor-quality oils need frequent changes and reduce the effective service life of transmissions. Delivering maximum oxidation resistance, wear control and friction performance, AMSOIL Torque-Drive extends lubricant life and provides protection beyond that possible from conventional ATFs. Immediate financial benefits are possible upon the installation of AMSOIL Torque-Drive. Vehicles stay on the road longer, unnecessary labor and maintenance costs are reduced, and the return on costly transmission investments is maximized.

THERMAL AND OXIDATIVE STABILITY
Hot operating conditions are no excuse for poor transmission reliability. By delivering a slower-than-normal oxidation rate, AMSOIL Torque-Drive helps prevent sludge that blocks small valves and varnish that restricts component movement, and reduces oil thickening that slows shift times. AMSOIL Torque-Drive lasts longer than conventional ATFs, protects better than conventional ATFs and extends transmission life beyond that possible with conventional ATFs.

SHEAR STABLE
Conventional automatic transmission fluids use petroleum oils with viscosity index (VI) improvers added to increase the oil's operational temperature range. Over time, VI improvers shear down, promoting premature wear by leaving only a thin base oil to protect vital transmission components. AMSOIL Torque-Drive does not contain VI improvers, which means no VI improver shear-down regardless of the operating environment. The exceptional film strength of AMSOIL Torque-Drive greatly reduces wear, promoting longer transmission service life.

FRICTION DURABILITY
Oxidation by-products destroy the sensitive friction characteristics of transmission fluids, resulting in the rapid degradation of shift quality. The thermal and oxidative stability inherent in AMSOIL Torque-Drive helps ensure consistent, smooth clutch engagement with no harsh shifting throughout the life of the fluid. AMSOIL Torque-Drive maintains proper coefficients of friction, and helps prevent clutch glazing and elongated shift times.

EXTREME TEMPERATURE PERFORMANCE
Transmissions operate in temperature extremes. In hot temperatures, the synthetic construction of AMSOIL Torque-Drive virtually eliminates oil evaporation and delivers a better lubricating film than conventional oils for better overall protection of vital components. Oil consumption is reduced and transmissions require less maintenance.

In cold temperatures, AMSOIL Torque-Drive easily flows, as it does not contain the wax found in conventional ATFs. Cold-temperature fluidity allows for the proper operation of small, delicate, electronically controlled solenoids that affect gear changes. Unlike conventional ATFs, transmissions using AMSOIL Torque-Drive have quick response times during cold operation and can be used immediately upon startup.

Product Applications
AMSOIL recommends Torque-Drive for use in heavy-duty, on- and off-highway automatic transmissions requiring any of the following specifications: Allison® TES 295, TES 389, C-4; Voith® 55.6336.XX; ZF® TE-ML 14C; GM Dexron® III; Ford Mercon®; Mercedes-Benz® 236.10. Examples of operations that benefit from using AMSOIL Torque-Drive include municipal or transit buses, motor coaches, garbage haulers, motor homes, delivery vans, emergency vehicles, school buses, dump trucks, utility vehicles, cement trucks, line haul trucks and tow trucks. Torque-Drive is designed to replace TranSynd® brand synthetic automatic transmission fluid for use in Allison® transmissions.

SERVICE INTERVAL
Torque-Drive is recommended for use according to the extended service interval established by the original equipment manufacturer for the performance specifications identified above under Product Applications.

HEALTH & SAFETY
This product is not expected to cause health concerns when used for the intended application and according to the recommendations in the Material Safety Data Sheet (MSDS).  An MSDS is available upon request at 715-392-7101 or on the Corporate AMSOIL website MSDS page.  Keep Out of Reach of Children. Don’t pollute. Return used oil to collection centers.

For warranty information, visit the Corporate AMSOIL website warranty page.

PHYSICAL DATA
AMSOIL Torque-Drive® Synthetic Transmission Fluid (ATD)
Physical Data
Torque-Drive
Kinematic Viscosity @ 100°C, cSt (ASTM D445)
7.4
Kinematic Viscosity @ 40°C, cSt (ASTM D445)
37.1
Brookfield Viscosity @ -40°C (cP)
8411
Viscosity Index (ASTM D2270)
170
Density @ 60°F (lb/gal)
7.038
Flash Point °C (°F) (ASTM D92)
230 (446)
Pour Point °C (°F) (ASTM D97)
-55 (-67)
Four-Ball Wear Test
(ASTM D4172B: 40 kg, 75°C, 1200 rpm, 1 hr) mm
0.45
Copper Corrosion (150°C, 3 hr)
1B
Spectrographic Analysis

Boron (ppm)
133
Calcium (ppm)
28
Phosphorous (ppm)
230
